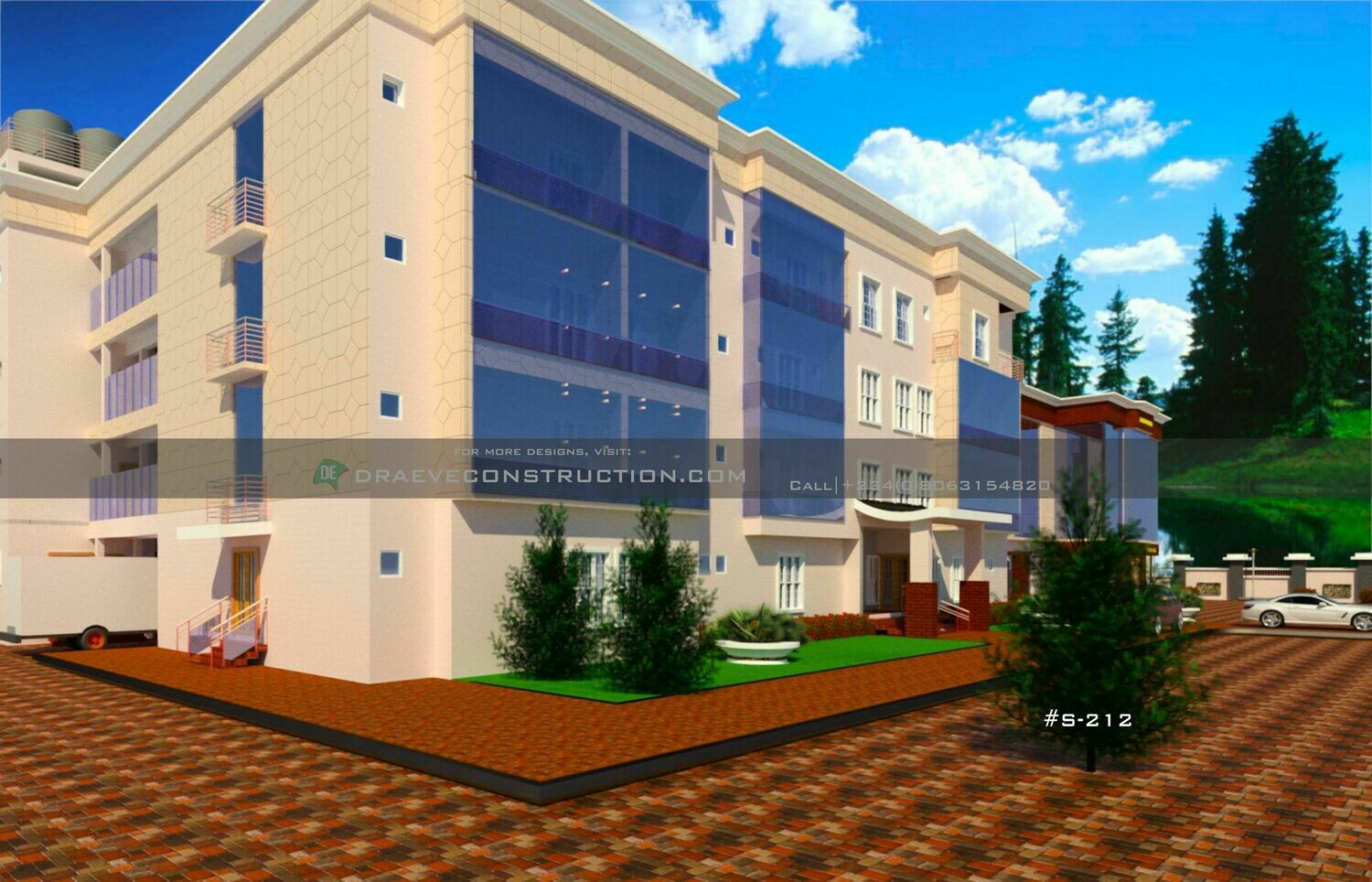

Hotel with Underground/Basement & Elevator Floorplans Preview
Product Details
MPN:
S-212
What you get:
- 1 Copy of Underground/Basement floor Plan with dimensions (Pdf)
- 1 Copy of Ground floor Plan with dimensions (Pdf)
- 1 Copy of First floor Plan with dimensions (Pdf)
- 1 Copy of Second floor Plan with dimensions (Pdf)
- 1 Copy of Third floor Plan with dimensions (Pdf)
- Dimensions included: Total Length, Width and Area of each Floor of the building
Hotel Features:
- All ensuite rooms
- Elevator
- Reception Hall
- Conference Hall
- General restrooms (groundfloor)
- Standard rooms with Sitouts
- Suite with sittingroom & sitouts
- Palace bedrooms
- Double bedrooms
- Bar, Restaurant
- Kitchen
- Basement with a lobby, 2 offices & 1 restroom each
Detached 3-storey building features:
- Mopol/Security selfcontain on each floor except Groundfloor
- Groundfloor comprises of laundry rooms & Security post
Car parking lot
Note: These floor Plans are for consideration purposes only, as they have been developed with a particular land area in mind, which may not be suitable for all land space or soil type. Please click here to request for customized design.
| Payment Methods |
PayPal, Debit/Credit Card and Local Bank Transfer |
| Before Payment | Please read the "What you get" & "Key features" sections for the description of the house plan(s) |
| After Payment | A Download link of all file(s) is sent to the email you provided during Payment |
| Returns & Refunds | After Payment has been made, there will been No returns or refunds on already delivered items |
