Supermarket Design Floor plan (1-Storey)

What you get:

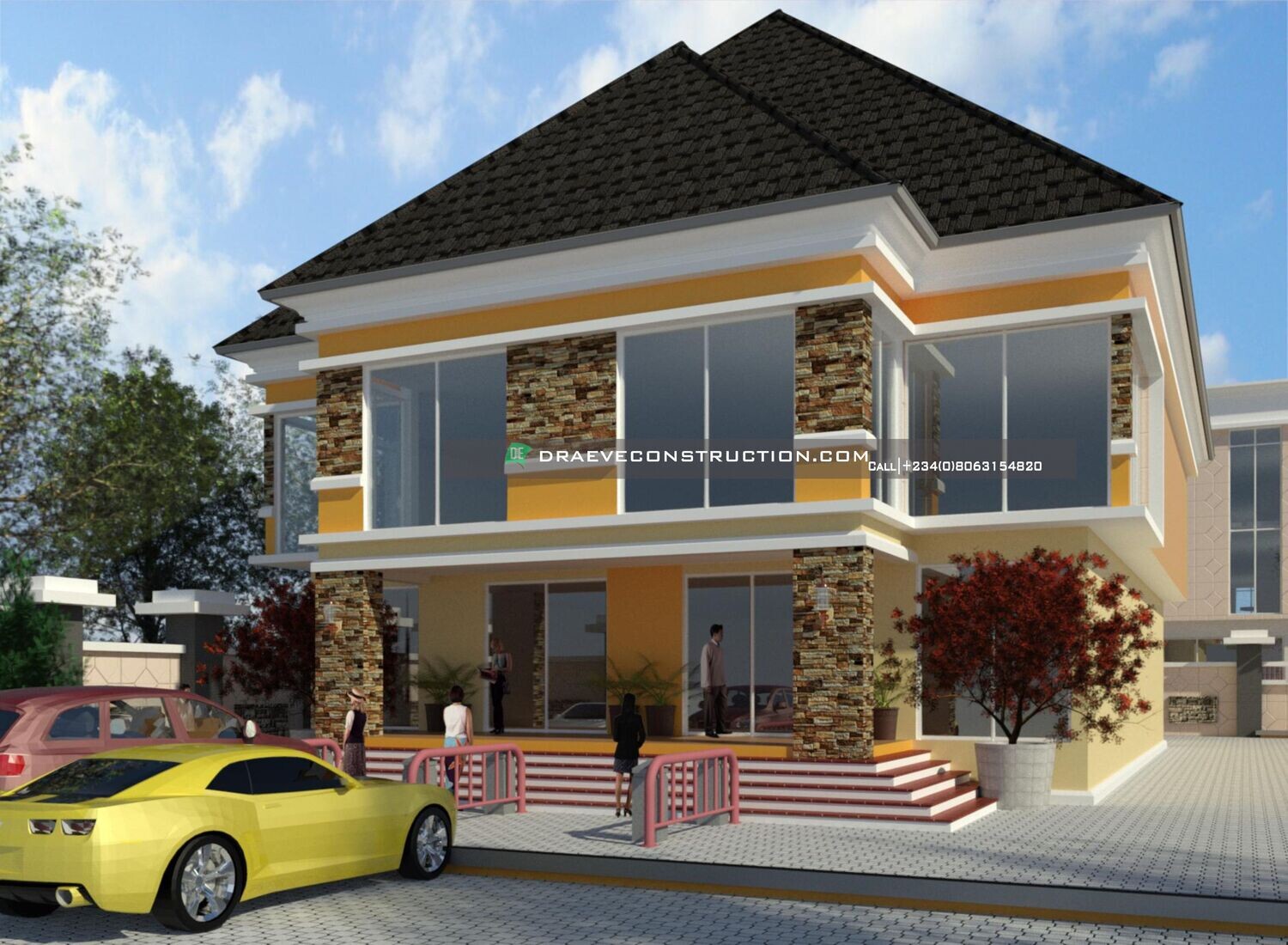

• Picture of Building (jpeg)
• 1 Copy of Ground floor Plan with dimensions (Pdf)
• 1 Copy of First floor Plan with dimensions (Pdf)
• Three (3) Dimensions included only. They include: Total Length, Width and Area of each Floor of the building

Groundfloor Features:

• Entrance Porch with Entrance & Exit Doors
• Display/Grocery Hall
• Office
• Manager's office with CCTV Control
• Freezer room
• 1 lavatory, 2 toilets

• Staircase

Firstfloor Features:

• Display hall
• Void
• Packing room
• Staircase

Car parking lot

Note: These floor Plans are for consideration purposes only, as they have been developed with a particular land area in mind, which may not be suitable for all land space or soil type. Please click here to request for customized design.
